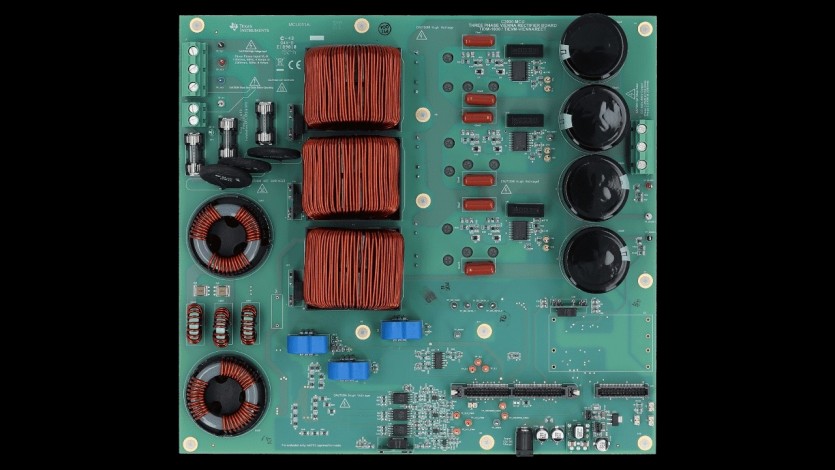

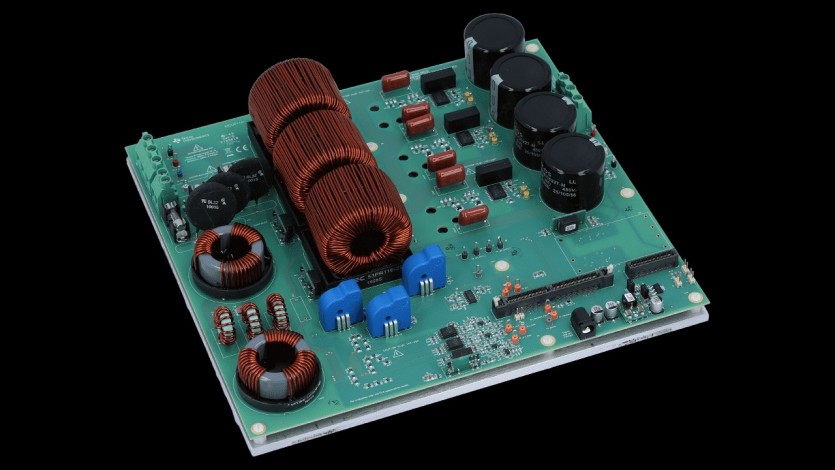

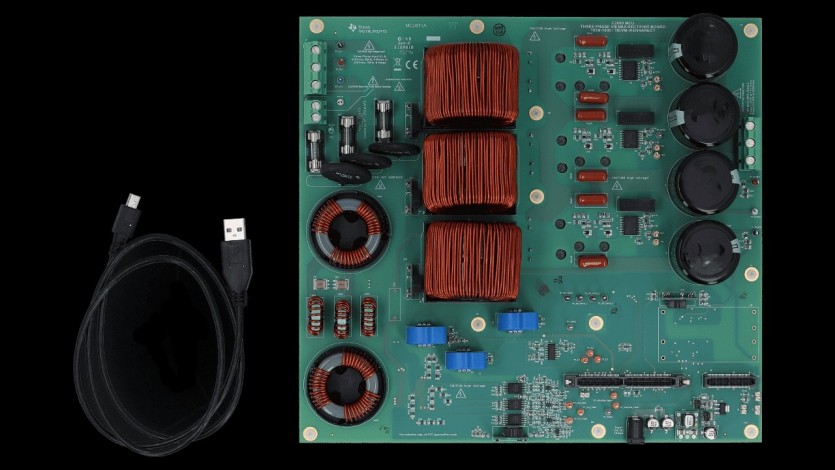

The Vienna rectifier power topology is used in high power three phase power factor (AC-DC) applications such as off-board electric vehicle (EV) chargers and telecom rectifiers. This design illustrates how to control the power stage using C2000™ MCUs. This design uses an HSEC180 controlCARD interface and the software supports the F2837x or F2838x and F28004x series of MCUs.
Learn more about what C2000 MCUs have to offer for electric vehicle applications.
Features
Hardware Features
- EVM with interface to accept HSEC180 controlCARDs
- Greater than 98% peak efficiency
- Less than 2% THD at full load and low line
- Up to 2.4KW design with three phase 400Vac VL-L Input
- Hardware Files are in DigitalPower SDK at solutions (C2000Ware_DigitalPower_INSTALL_PATH>\solutions\tidm_1000\f2838x)
